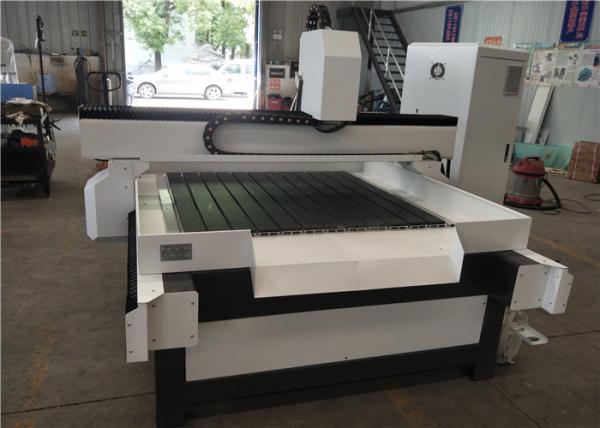

UT1212-MS CNC stone engraving machine with CE
❈ The use of breakpoint memory
ensures the continuing of processing in case of accidents. Such as cutter broke, power failure and stuck unforeseen.
❈ Just a touch of the automatic lubrication system, easy to complete regular maintenance.
❈ Compatible with any advanced CAM/CAD software,such as Type3, Artcam,CAXA,Pro-E,UG, Artcut, Mastercam.
❈ Adopt NCstudio CNC system, keyboard operation, large screen display,easier to operate and maintain, more humanized design
CNC stone engraving machine with CE
1. CE certificate
2. 4.5kw water cooling spindle
3. stepper motor 118
1. -Application
This-series-of-models-mainly-used-for-heavy-weight-of-the-tile,-bluestone,marble,-granite,-white- marble,-sandstone,-glass-engraving,-metals-engraving-and-so-on.-
2. -Configuration:
-- 1.4.5kw-water-cooling-spindle-
-- 2.stepper-motor-118-
-- 3.-Taiwan-Yako-driver-2811
-- 4.the-whole-steel-structure-
-- 5.all-axises-imported-Twaiwan-Hiwin-Linear-sqaure-orbit-.
-- 6.ballscrew-transimssion-
-- 7.Original-TYPE3-UCANCAM-software-
-- 8.DSP-Control-system-(NC-studio-control-system-)
-
3. Features
1. X,Y,-Z-three-axises-all-use-imported-square-orbits-.heavy-loading,-stable-working,-high-precision-and-long-lifetime-.
2. It-also-equips-with-water-groove-and-dustproof-structure.It-can-protect-the-machine-and-make-it-long-operating-life--
3. Water-cooling-constant-torque-spindle-with-the-imported-bearings,-high-power-and-low-noise.--
4. The-transducer-with-stable-output-signals
5. Fully-sgielded,bending-circuity,-and-imported-electronic-components.
6. Double-drivers-to-drive-y-axis,-motivity-is-more-stronger
7. Whole-seamless-steel-structure,can-load-weight-up-to-1000kg/
8. Well-compatibility,-compatible-sofetware-CAD/CAM,-such-as-Type-3,-Artcam,Castmate, UCANCAM-,Coredraw
-
4. Parameters:
| XYZ Travel Size | 1250X1250X200mm |
| Max Working Size | 1200X1200X150mm |
| Table Size | 1300X1200mm |
| Transmission Type | XY rack/Z ball screw |
| Guide Rail | Linear Guide |
| Table Type | T-Slot |
| Spindle Power | China water cool spindle 3.0KW/4.4KW |
| pindle Speed | 24000rpm |
| Max Travel Speed | 20000mm/min |
| Max Work Speed | 12000mm/min |
| Motor | Step/servo motor |
| Work Voltage | AC380V 50HZ |
| Controller System | Ncstudio/DSP |
| Processing Accuracy | ±0.05mm |
| Repeat Positioning Accuracy | ±0.01mm |
| File Format | G code or PLT |
| Overall Weight | 1200KG |
| Overall Dimension | 1900X1900X1600mm |
